John Wood Gas Water Heaters Review and Buying Tips
(updated 2018)

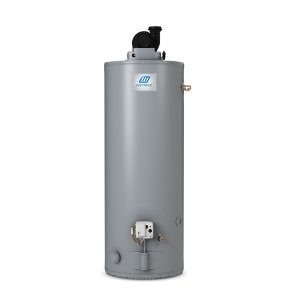

John Wood power vent water heater

A review of the John Wood gas water heaters with the storage tank and using different venting options: atmospheric, direct, power direct and power venting, including the ultra-efficient models such as the Envirosense and Polaris. Compare the models and check out the main differences.

Highlights

  • Atmospheric vented models
  • Power vented models
  • Power Direct Vent
  • Direct Vent
  • Envirosense Power Direct Vent - high efficient
  • Envirosense Power Vent - high efficient
  • Polaris - high efficient

Atmospheric vent (Energy Star and Standard)

Equipped with the FVIR Flame Guard Safety System, John Wood gas water heaters with the atmospheric vent reduces the risk of the accidental ignition of the flammable vapors outside the combustion chamber.

Only atmospheric vent models that utilize the flue damper are Energy Star compliant due to the increased energy efficiency and performance. These models also include the gas valve with the diagnostic capabilities that also monitors the proper work of the flue damper.

They also contain the Turbulator system, a system with the advanced design of the dip tube for reducing the sediment build-up and prolonging the heater’s life and performance.

There are four models available in this group, two having the 40-gal and two with the 50-gal tank capacities, all with the energy factors of 0.67.

Atmospheric vent units are also available with the thermopile design that is built with the better quality pilot and gas valve while the LED indicator helps in diagnostic and troubleshooting.

The group has more models to choose from, from 30 to 75-gal capacity, but the energy factor is lower than the previous group, it is in the range from 0.58 to 0.60.

Power Vent

John Wood gas water heaters with the power vent options are Energy Star models, designed with the tank capacities from 40-gal to 75 gallons and with the energy factor of 0.70 or 0.68 on 75-gal models.

The power vent and its rotatable blower allow flexible venting installation so the water heaters can be vented either horizontally through the outside wall or vertically through the roof, which is not the case with the previous type. The advanced gas control valve features the self-diagnostic capability for convenient and easy troubleshooting.

All power vent models from John Wood include the Flammable Vapor Sensor and air intake snorkel as part of the FVIR system that prevents the ignition of the flammable vapors coming from gasoline, paint and different solvents when are stored close to the water heater.

Power Direct vent - PDV

Power direct vent models utilize the electric blower and the sealed combustion for safe operation as the indoor air is untouched. As the previous power vent models, PDV units also provide great flexibility during the installation with the long vent lengths and different materials used. Only two sizes; 40 and 50 gallons are available and both are high-efficient.

- Find Plumbers In Your Area -

Get Free Plumbing Quotes!

Direct Vent

John Wood gas water heaters with the direct venting use the Flame Safe technology that is designed to protect you from the accidental ignition of flammable vapors. While the most units have the standard piezo-pilot ignition, direct vent water heater utilizes the thermopile design so the pilot can withstand different conditions and does not need electrical power to run.

Envirosense Power Direct Vent

The Envirosense Power Direct Vent is the ultra-efficient water heater that comes with the 96% energy efficiency, mainly because of its design that utilizes the spiral-shaped and condensing heat exchanger. The availability of the side connections makes the unit suitable for use in recirculating systems.

The advanced electronic control comes with the large LCD display where it shows the temperature and the error codes if the problem appears. As opposed to the above models, Envirosense uses two sacrificial rods for better protection against corrosion. There is only one model available and it comes with the most popular tank size of 50 gallons.

Envirosense Power Vent

Envirosense Power Vent group offers a 50-gal unit with the slightly lower efficiency, 90%, but still considered as ultra-high. The difference between this model and the above unit can be seen in its Intelli-Vent gas control with the silicon nitride hot surface igniter that is considered as indestructible, and lack of the LCD screen.

Both models have the same tank size, but the previous model has the higher gas input, 100,000 vs. 76,000 BTU and recovery rate, while the First Hour Rating is higher on Envirosense Power Vent model. This model is available in natural gas only, while the above model uses both natural gas and propane.

Polaris water heater

Polaris is the ultra-efficient gas water heater that utilizes the submerged combustion chamber with the spiral flue and is able to provide 95-96% thermal efficiency. All the John Wood gas water heaters utilize the metal tank, but not Polaris, it is equipped with the stainless steel tank that provides years of service and eliminates the need for the sacrificial anode rod, so there is less maintenance involved.

The high-quality gas burner produces fewer NOx gases and is durable due to better resistance to the stress. Polaris can be found in the capacity range from 34 to 50 gallons, all designed for use in potable water and space heating applications.

When you compare Polaris with the second best models, the Envirosense, you will see that the power input on Polaris is much higher 130,000 vs. 100,000 BTU, including the recovery rate; 166 GPH vs. 129 GPH.

John Wood gas water heaters are probably the most popular type due to a variety of models, installation options, durability, reliability, high efficiency and great performance. Gas heaters heat and recover fast which is important in large households, and with the availability of the condensing technology, they can reduce the energy waste and impact on the environment greatly.
