Exploring Hot Water Heater Parts
Buying, Replacing & Installing Tips
(updated 2020)

Explore hot water heater parts and accessories found on electric and gas water heating appliances for easier order and purchase. With a better understanding of the heater's components such as the gas valve, thermocouple, pilot light, venting system, and others, it is much easier to troubleshoot and fix the problem. By using the instructions found here and combining it with our troubleshooting guide, it makes easier to repair or replace the broken parts.

This article and review will cover mainly parts of the storage gas and electric tank heaters as the most common source of the residential water heating.

If you are the owner of the tankless heater, use this article to check out the parts.

Main gas and electric water heater parts

Gas water heaterGas water heater
Electric water heaterElectric water heater

As we can see in the design of every residential water heater, some components are standard, while others are there for the efficient heating operation and increased safety. Good examples are the heat traps, powered draft hood, hot surface ignitor, flame arrestor, powered anode rod, dry-fire protection... Such a difference provides longer warranty, higher savings, and comfort, but also a greater initial price.

You can even contact a professional plumber and upgrade your water heater with the quality elements increasing the performance, efficiency, and heater's life.

Storage water tank

The majority of the water storage tank heaters are equipped with the tanks made of carbon steel, while some models, such as Rheem Marathon, utilize a plastic tank, or Westinghouse that uses a storage tank made of the stainless steel. Such a construction automatically eliminates the need for an anode rod, corrosion protection, and frequent maintenance.

Due to the corrosive water action, water heaters that are equipped with the metal tanks must include the glass/ceramic lining and anode rods.

The main purpose of the storage tanks is to store hot water. Tanks are wrapped in insulation so it can retain hot water longer. And with the thicker insulation the unit becomes more efficient. Typical insulation types are fiberglass and polyurethane foam that come with the thickness of 2 and 3 inches.

Gas valve

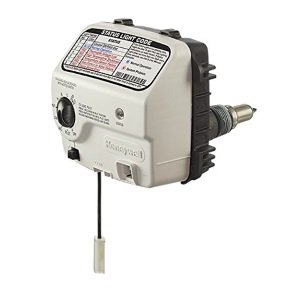

Gas valveGas valve

Robertshaw, White-Rodgers, and Honeywell are three of the most popular gas control valves and are found on the majority of gas water heaters. The gas valve is the heart of the water heater as it controls delivery of the natural or propane gas to the burner and pilot light, and is also designed as a safety device. Since the thermostat is part of the gas control valve, by turning the knob, you can increase or decrease the temperature of the outgoing hot water.

Gas control valves from the above manufacturers have similar elements like the gas control knob, reset button, high water temperature limit safety, and temperature dial. More advanced valves are those that have a diagnostic system for troubleshooting and more accurate temperature control.

Heating elements

Heating elementHeating element

Electric heating elements are the source of the heat on the electrical appliances and are usually found as the upper and lower elements on tall units. Smaller models are usually equipped with only one element. These electric water heater parts can also be found in solar heating systems and heat pumps where are used for backup heating.

In addition to the electric element protection, some water heaters are equipped with the dry-fire feature, which protects the elements if exposed to the air.

Anode rod (sacrificial anode)

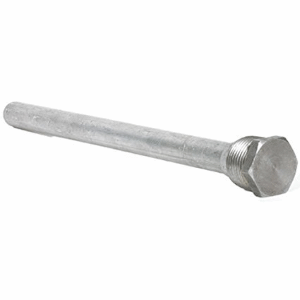

Anode rodAnode rod

The anode rod protects the steel metal tank from corrosion, together with the tank's glass or ceramic lining. The element is usually called the sacrificial anode, as it sacrifices itself in order to extend the tank's life. The powered anode is not sacrificial and is found on better models.

They are typically made of zinc, magnesium, or aluminum installed at the top of the unit and can be easily replaced.

Check out this article about anodes to determine how the anode affects the water heater performance, which one is the best, and what the common problems are.

Venting and flue pipes

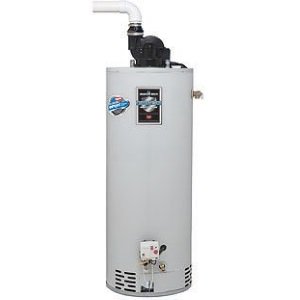

Power VentPower Vent

The venting system is designed to vent the products of combustion out through the flue baffle and vent pipes, and in some models to draw the fresh air in, needed for proper gas combustion. Based on your preference, home design and construction, the location of the heater and other requirements, you can find different types of venting systems; atmospheric, power, direct and power direct vent, also:

  • Two-pipe closed combustion system that eliminates the problems caused by the insufficient indoor ventilation, while it draws the fresh air from outside the home.
  • Two-pipe or one-pipe atmospheric vent system with the draft hood.
  • Concentric vent system - consists of two pipes (pipe within the pipe); the larger pipe is used to draw the air in, inside the pipe is designed to direct the gases out. It can be used with or without the electric-powered blower.

Keep in mind that different types require different venting material, including stainless steel, PVC, or sheet metal.


The electric blowers use a 110/120 volt electrical system, usually rating 3 amps or less and are equipped with the 6-foot cord.

Electric blowers are typically installed on top of the water heater from where it pushes the exhaust and excess heat to the outside atmosphere.

Dip tube

Dip tubeDip tube

The dip tube connects the cold water inlet and extends almost to the bottom of the tank (approximately 6" clearance). There are different types used, which depends on the model and the manufacturer. For example, Bradford White company utilizes the perforated tube to create the turbulent flow and reduce the scale and sediment buildup, resulting in the maximized hot water output. It is usually made of PEX polymer.

The main purpose of the dip tube is to allow cold water to enter the bottom of the tank. Since hot water tends to rise to the top and while cold water enters at the bottom, water inside the tank can freely circulate, reducing the risk of the sediment buildup.

- Find Plumbers In Your Area -

Get Free Plumbing Quotes!

Gas burner assembly

One of the essential parts found on gas-fired appliances is the gas burner assembly, consisting of several components:

Main burner. The main burner is the heat source of gas water heaters and is located below the storage tank. The advanced models from the manufacturers such as Rheem, AO Smith, and Bradford White, utilize the Eco-friendly burners and are able to reduce NOx emissions by one third when compared to the standard burners.

Orifice. The burner orifice should be replaced when converting the water heater from natural to LP gas.

Manifold tube. It consists of the pilot burner/pilot light with the pilot tube and orifice. On water heaters with the pilot light, a pilot burner remains ON once it is manually lit. It is used to ignite the gas. Some manufacturers utilize the hot surface or electrodes instead of the pilot flame.

An igniter like a piezoelectric or hot surface is used to light the gas.

Thermocouple. The thermocouple is the safety part used to send the signal from the pilot light to the gas control valve to control the gas delivery. The small electrical current is generated, which is enough to signal if the flame is present or not. A thermopile does the same thing as the thermocouple - converting heat into the electrical energy, but is composed of a few thermocouples connected into series, increasing the unit’s ability to produce electricity.


The ECO or Energy Cut Off is the metal tube (temperature probe), which is mounted onto the back of the gas valve and immersed inside the water tank. It acts as the temperature high limit.


The TCO or Thermal Cut Off Switch is a resettable thermal switch, constructed to shut off the gas supply if the temperature of products of combustion is too high.


Mechanical type thermostats are used on standard residential water heaters. Thermostats are usually factory set to 120 F to prevent scalding water, and they operate with a certain tolerance.

FVIR and flame arrestor (or arrester)

The fireproof flame arrestor, built in the water heater base, is part of FVIR or Flammable Vapor Ignition Resistant technology that deals with the accidental or unintended ignition of flammable vapors. It is made of the fireproof material such as stainless steel or ceramic, and it blocks the flame from escaping the gas combustion chamber.

TPR valve

TPR valveTPR valve

The TPR valve or temperature and pressure relief valve is used to protect the system from the excessive hot water pressure and temperature. It is usually combined with the discharge pipe to an adequate drain. These elements are factory built-in and are code on all tank-type water heaters.

Drain valve

Drain valveDrain valve

Water heater drain valves are found on every water heater and are made of plastic or brass. The main purpose of the drain valve is for draining, flushing, and maintenance.

The recommendation is to use one made of brass as they are more durable and have better quality while plastic drain valves are easy to damage, especially around the threads making it more likely to leak.

Air pressure switch

Air pressure switch is used on all gas water heaters that are using the electric-powered blower for venting products of combustion. It is used for all power vent and power direct vent heaters to verify that operational conditions are met.


Different foam thicknesses around the tank will provide more or less savings in energy and heat waste, efficiency, and performance improvement. This is why some manufacturers are designing hot water heaters with 2" or 3" high-quality insulation, while on the low efficient heaters, it is recommended to use an insulation blanket.


Electric TimerElectric Timer

One of the great ways to reduce energy consumption and save money is to install the electric water heater timer. A water heater timer is designed to turn the water heating off during periods of inactivity and turn it on when needed.

Mixing valves

Hot water mixing valves are used in residential water heating; for showering, bathing or hand-washing, to reduce the point-of-use temperature by mixing hot and cold water in the branch water line.

Recirculating pumps

If it takes too long to get hot water in the kitchen and bathroom fixture, install a recirculating pump. Circulation pumps are designed to deliver hot water on demand. Better pumps include sensors and timers for better control.

You can get a fully recirculating pump system with a loop from the water heater to the faucet and back, so no water is left inside the pipe.

There is also a system that utilizes an existing cold water pipe to send the unused water back to a water heater.

The main benefits of installing a recirculating pump are that you will get a continuous flow of hot water, water is always hot (ready) at the point of service, water, and energy savings.

Expansion tanks

Expansion tanks are designed to protect the water heating system by accepting excess water volume that occurs when water is heated and due to high pressure inside the water heater. These tanks are used on closed systems and are considered as safety devices.

How to order repair parts

What you should know when ordering gas or electric water heater parts:

  • Have the complete part number and description ready.
  • Have the water heater model, series, and serial number ready.

Note: If any part of the water heater has been exposed to excessive moisture, you should contact a qualified service technician for the repair. If the water heater has been subjected to the flood conditions or any of its parts, including gas controls, the main burner, pilot light was submerged in water; an entire water heater should be replaced.
